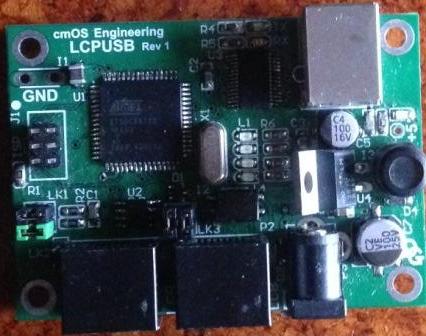

The cmOS Engineering USB to CAN interface is primarily intended to interface between computer/control systems and
model railway layouts running Layout Command & Control (LCC). Power can be injected into the CAN bus or drawn from it. The LCPUSB is supplied with jumper selectable CAN termination. User Manual here. Windows Drivers here. MAC drivers here. |
| Mechanical | ||||
|---|---|---|---|---|
| Dimensions | Mounting | Weight | ||
| Width: 70mm Height: 60mm | 4 x 3.5mm holes | 30g - 1.05oz | ||
| Environmental | ||||
| Operating | Storage | |||
| -40°C to 85°C; Humidity <90% | -60°C to 150°C; Humidity <90% | |||
| Electrical | ||||
| Absolute Maxima | Supply Voltage 13.8 Volts | |||
| Supply Voltage | Min 7.0V - Max 12.8V; Reverse voltage protected | |||
| Supply Current | 35mA | |||
| Connectors |
1 x 7mm Input Power, centre pin positive35mA 2x RJ45 Ethernet Looping Power and CAN ground Jumper Option |
|||
| CAN Termination | Passive bypassed split resistors (Jumper Option) | |||
| Standards | ||||
| USB 2.0 | Maximum serial data rate 333K Baud | |||
